Brazed Plate Heat Exchanger

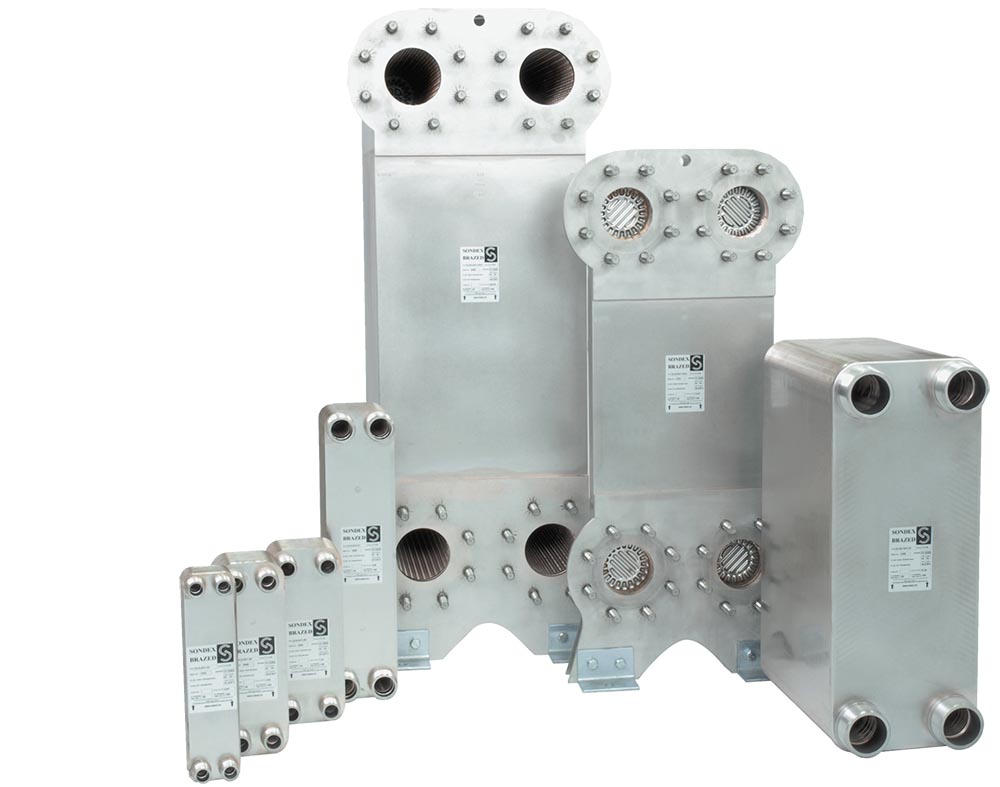

Sondex Brazed Plate Exchangers

Description

Description

Sondex brazed plate heat exchanger consists of a number of thin acid-resistant precision stamped stainless steel plates with copper brazed gaskets.

The plate packs are brazed with two end plates and connections. Vacuum brazing at extremely high temperatures provides a permanently sealed heat exchanger. The final result is a strong and compact plate heat exchanger with extremely high heat  transfer capability.

Specs

Available Materials: Stainless, Titanium, Alloys

Typical Applications: Lube Oil Cooling, Refrigeration Exchangers, Process Exchangers

Min Temp: 0°F

Max Temp: 450°F

Max Pressure: 400 psi

Design Codes Available: ASME

Documentation

Product Brochure: Download PDF
