Spiral Plate Exchanger

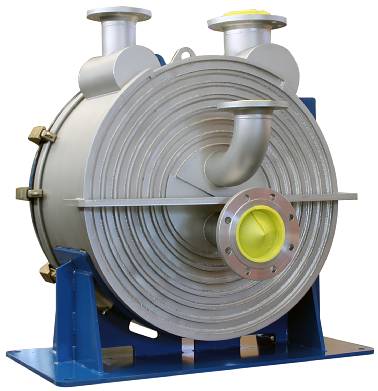

Sondex Spiral Plate Exchanger



Sondex Spiral Heat Exchangers are circular heat exchangers with two spiral channels, each in one closed chamber.  The flow of the two products are counter-current which makes it possible to have a close temperature approach between the two medias being treated in the heat exchanger.


Available Materials: Stainless, Titanium, Alloys

Typical Applications: Any service that contains particulate that must be held in suspension.

Min Temp: 0°F

Max Temp: 450°F

Max Pressure: 400 psi

Design Codes Available: ASME


Product Brochure: Download PDF
